PREFAB PANELS
A Fast, flexible & effective solution for high-performance green building
B.PUBLIC standardized and prefabricated wall/floor/roof system creates High-Performance Building Envelopes that are predictable in performance, cost, and delivery. The “lego-like components” work together to create an envelope that is ready to be finished with interior and exterior materials, allowing for aesthetic and regionally appropriate treatments and customization.
We offer onboarding, technical assistance, and sales support to specify our components. We understand that there is a growing desire to adopt off-site construction but there are many questions and time to learn new ways of designing and building and we are here to help. Let’s go greener - we are here to support your team. Connect with us for more information and to be added to our ecosystem of green leaders.
R30 AdvanceD Wall
-
Off-site prefabricated light frame wall assembly
2x8 SPF framing @ 24" oc with
1/2" Structural sheathing
Whole wall R-30 (PHPP)
Class II / vapor variable membrane 0.13 to >13.0 perms. Rated WRB, 2- months exposure
Dense-pack Cellulose: Borate treated for fire, mold, insect resistance
Fully adhered monolithic non-porous vapor-open weather barrier, rated 6-months exposure
7.75" structural core / 9.25" w/ furring
-
Vapor open Assembly
IECC 2023 Code compliant for zones 3 through 6
Industry leading acoustic performance
Eliminates wind washing energy loss
Carbon storing / Low embodied energy
> 70% post consumer recycled content by weight
Living Building Challenge compliant - Red list free
No dangerous off-gassing
Urea-Formaldehyde & foam free
R35 PERFORMANCE WALL
-
Off-site prefabricated light frame wall assembly
Thermally broken studs @ 24" oc
1/2" Structural sheathing
Whole wall R-35 (PHPP)
Class II / vapor variable membrane 0.13 to >13.0 perms. Rated WRB, 2- months exposure
Dense-pack Cellulose: Borate treated for fire, mold, insect resistance
Fully adhered monolithic non-porous vapor-open weather barrier, rated 6-months exposure
10" (11.5" with interior furring)
-
Vapor open Assembly
Consistent high R-Value
Industry leading acoustic performance
Thermal bridge free per PHI standards
Eliminates wind washing energy loss
Carbon storing / Low embodied energy
> 70% post consumer recycled content by weight
Living Building Challenge compliant - Red list free
No dangerous off-gassing
Urea-Formaldehyde & foam free
R52 Ultimate Wall
-
Off-site prefabricated light wood frame wall assembly
Thermally broken studs @ 24"
OC 1/2" Structural sheathing
Whole wall R-52 (PHPP)
Class II / vapor variable membrane 0.13 to >13.0 perms. Rated WRB, 2 months exposure
Dense-pack Cellulose: Borate treated for fire, mold, insect resistance
Fully adhered monolithic non-porous vapor-open weather barrier, rated 6 months exposure
14.5" (16" with int 1.5" furring)
-
Vapor open assembly
Consistent high R-value
Class A flame & smoke rated materials
Industry-leading acoustic performance
Thermal bridge free per PHI standards
Eliminates windwashing energy loss
Carbon storing / Low embodied energy
> 70% post-consumer recycled content by weight
Living Building Challenge compliant - Red list free
No dangerous off-gassing
Free of urea-formaldehyde & foam
The B.PUBLIC Prefab component system is designed and assembled to create a building’s structure & thermal envelope. B.PUBLIC panels utilize code-compliant wood framing & sheathing. The system is thermal-bridge-free, vapor-open, air-tight, and super-insulated with dense-packed cellulose. The panels are wrapped and sealed with air and weather-resistant barriers. The panelized building blocks of Floor, Wall, and Top components work together to create a structural shell ready to be finished with interior and exterior finishes. Standard and custom sizes of our assembly are available for every project up to three stories, with custom roof panels are available for pitched and shed profiles.

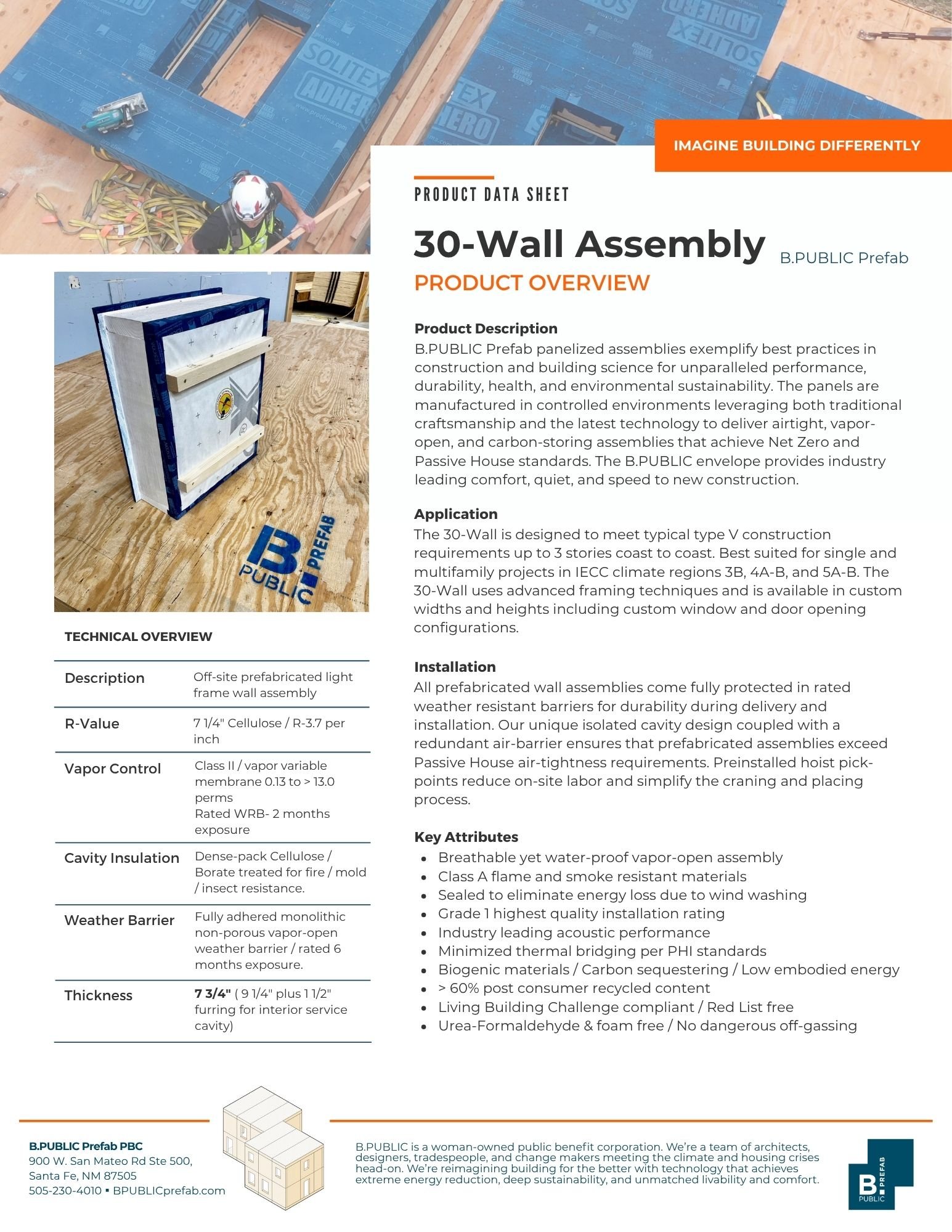

30-Wall Spec Sheet

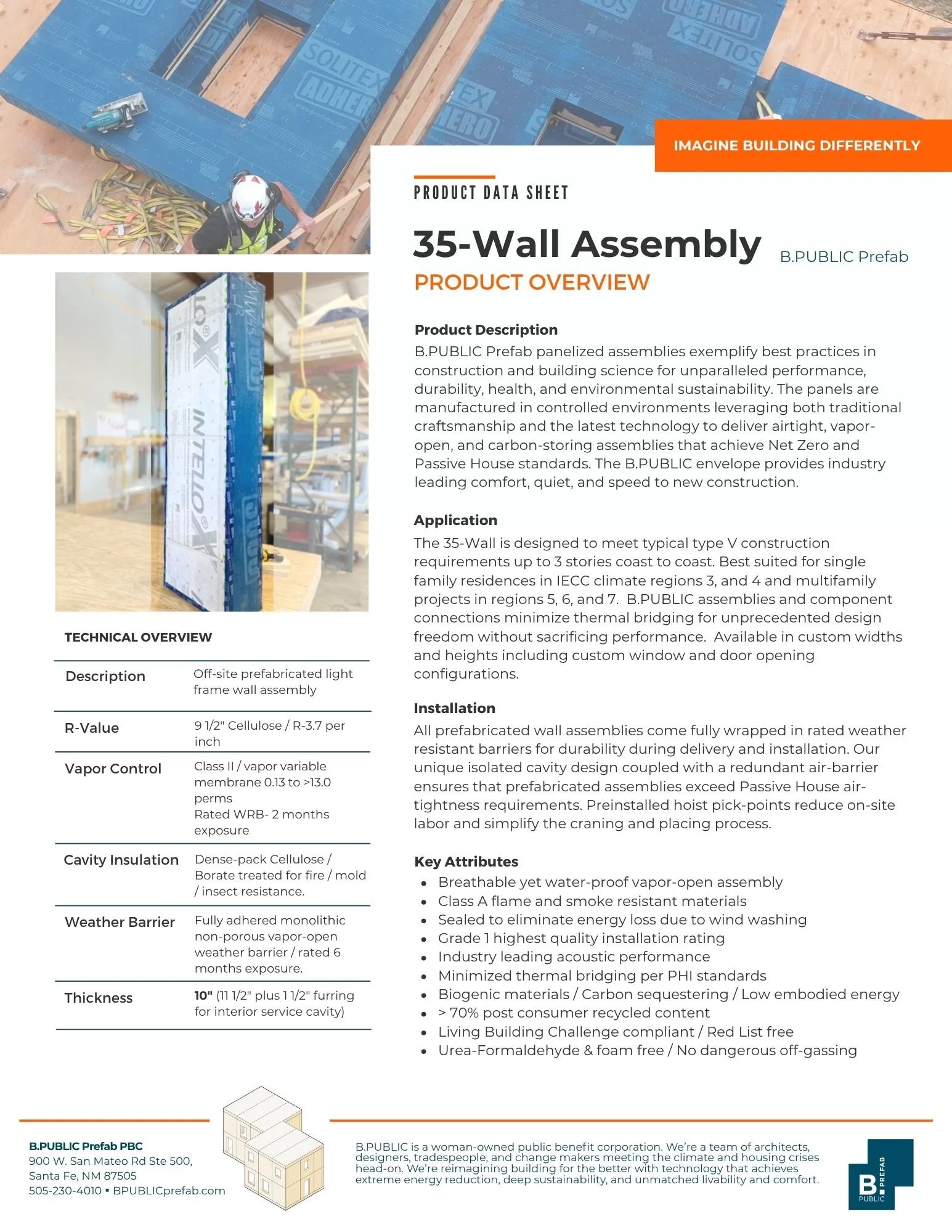

35-Wall Spec Sheet
52-Wall Spec Sheet

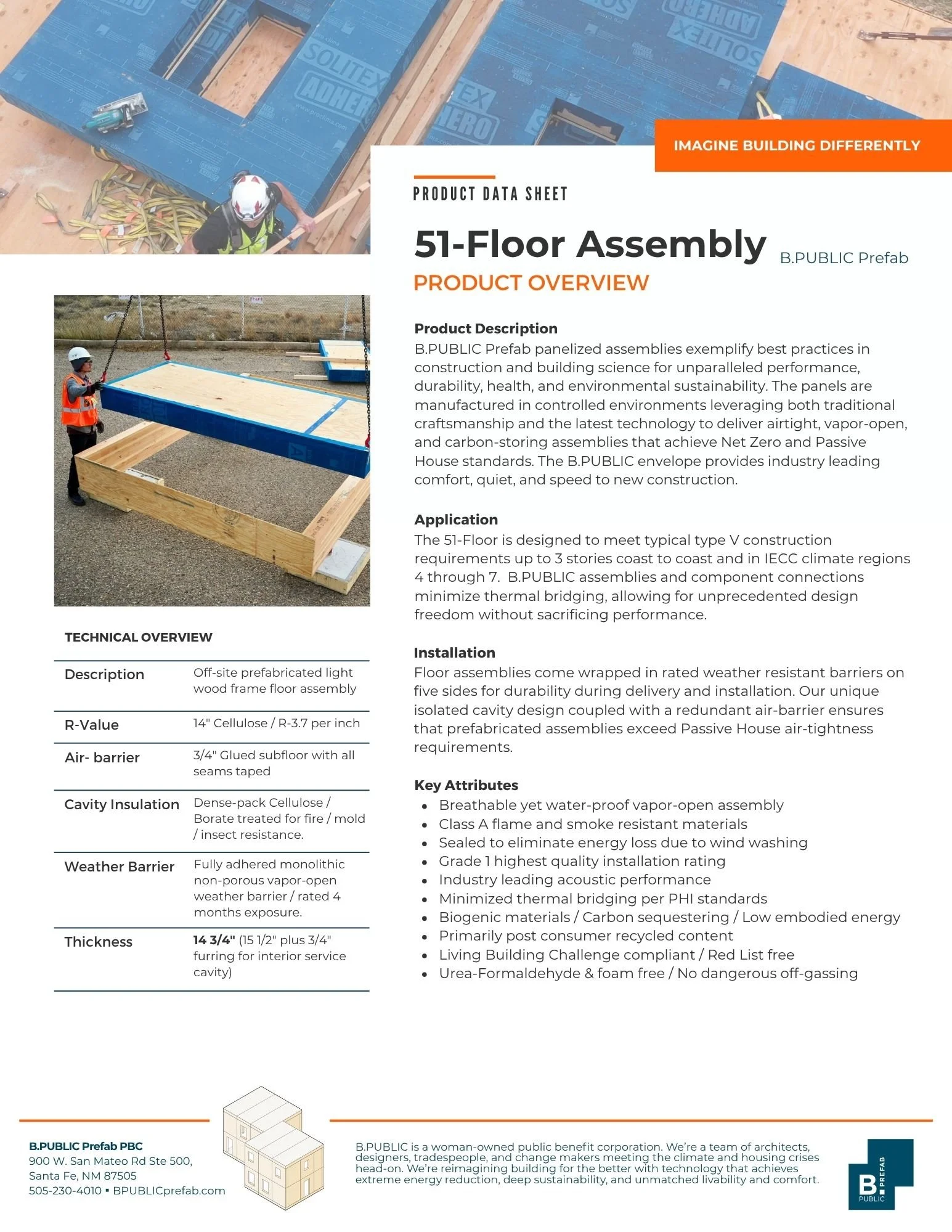

51-Floor Spec Sheet

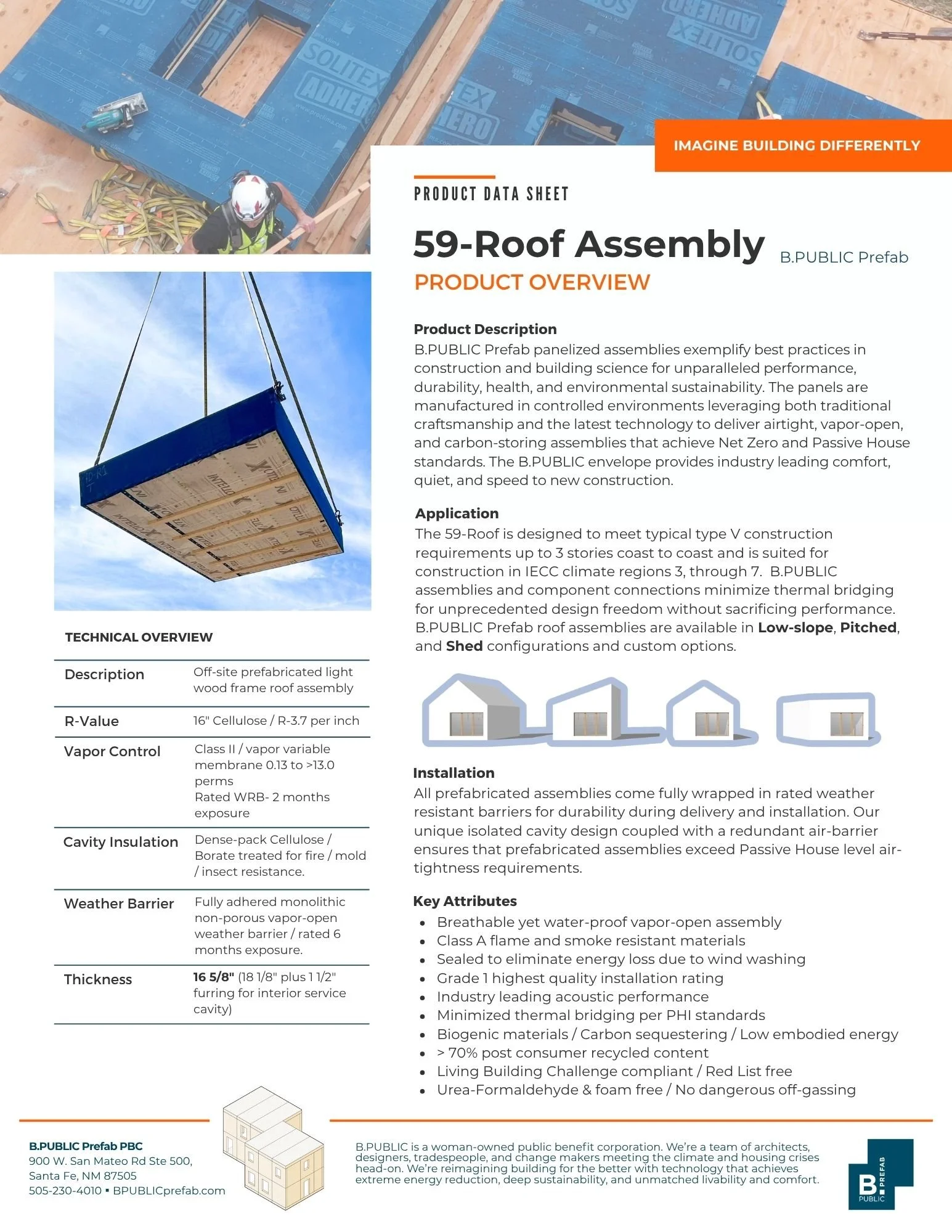

59-Roof Spec Sheet
80-Roof Spec Sheet
Series E updates include a fully adhered weather barrier on the wall and top panels. Exterior furring strips are now optional and are no longer standard on wall panels.
